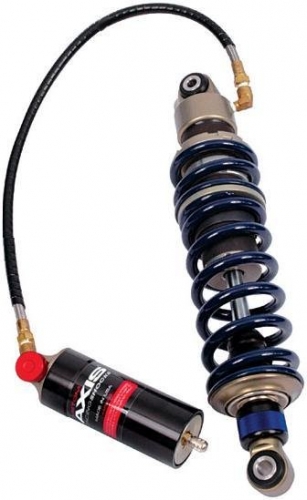

Custom Axis Rear Shock Yamaha YFZ 450R and 450X
SKU: caxisrearYFZ450R
|
Overview
The Custom Axis remote reservoir style rear shocks give the most packaging flexibility of a high-performance shock absorber. It accomplishes this by allowing the reservoir to be mounted remotely to any desired surface. This provides enhancements in accessibility to the adjusters, especially in tight areas that are difficult to reach by hand, as in a rear swing arm installation. Remote rear shocks are available with single or double rate springs.
Features:
Double Adjustable Damping (1 Compression, 1 Rebound)
Triple Adjustable Damping (2 Compression (hi-lo), 1 Rebound)
Easy to Grab and Adjust Compression and Rebound Knobs.
Simple and Efficient Design.
Low-Friction Seals and Wipers for Low Breakaway Force.
Modular Design to Allow Retrofit to Existing Shocks.
Benefits:
Lightweight.
Easy Installation and Removal.
Adjustable Crossover System(dual rate) to Tune Ride Height and Main Spring Progression.
Race Winning Components.
Available Upgrades:

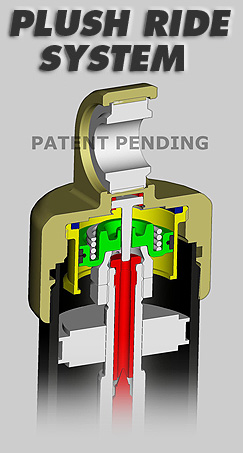

Plush Ride System:
The Custom Axis Plush Ride System (PRS) is a patent pending, anti-bottoming system available as an upgrade on our Pro Air, Piggyback Coil Spring, and Remote Rear Coil Spring shocks. PRS provides progressively higher damping force as the suspension nears bottom, and is controlled more effectively and consistently than typical bump rubbers. By separating full travel anti-bottoming resistance from normal ride situations, PRS riders enjoy an extremely plush, compliant suspension.
* Faster Jump Landing Recovery.
* Lower Ride Height.
* Added Stability throughout Cornering.
* Improved Traction.
* Drastically Reduced Rider Fatigue and Arm Pump.
Multi-spring or air spring suspensions typically require major increases to their main spring rate to resist bottoming, which negatively impacts ride characteristics. With the Plush Ride System, ATV riders can enjoy an optimum, no compromise, setup with a “best of both worlds” feel.

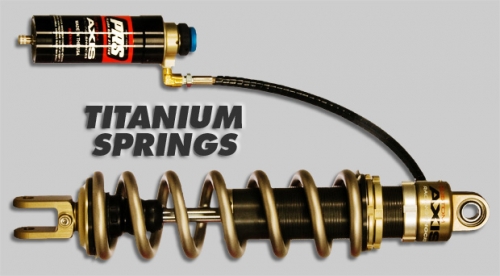

Titanium Springs:
* RCS titanium springs are available for all of our Coil Spring shocks. Titanium springs provide ultimate spring response of the suspension and reduce overall quad weight by 5 lbs. to 10 lbs.
Custom Axis shocks are custom made to order. Please allow an extra week to manufacture.
